Sansui 9090DB Dolby Stereo Receiver – 125 Watts Per Channel – Legendary Vintage Hi-Fi Powerhouse

THE LEGENDARY SANSUI 9090DB – POWER, PERFORMANCE & DOLBY TECHNOLOGY

The Sansui 9090DB is one of the most desirable receivers from the golden age of Japanese hi-fi. Introduced in the mid-1970s, this flagship-level receiver combines serious amplifier power, an exceptional AM/FM tuner, and built-in Dolby noise-reduction technology.

Delivering an impressive 125 watts per channel RMS into 8 ohms, with both channels driven from 20Hz to 20kHz, the 9090DB has the power and control to drive demanding speakers while delivering the rich, detailed sound vintage Sansui equipment is famous for.

What makes the 9090DB especially desirable is its built-in Dolby noise-reduction circuitry. Unlike the standard Sansui 9090, the 9090DB can decode compatible Dolby FM broadcasts and encode and decode compatible tape recordings, helping reduce unwanted background noise and hiss.

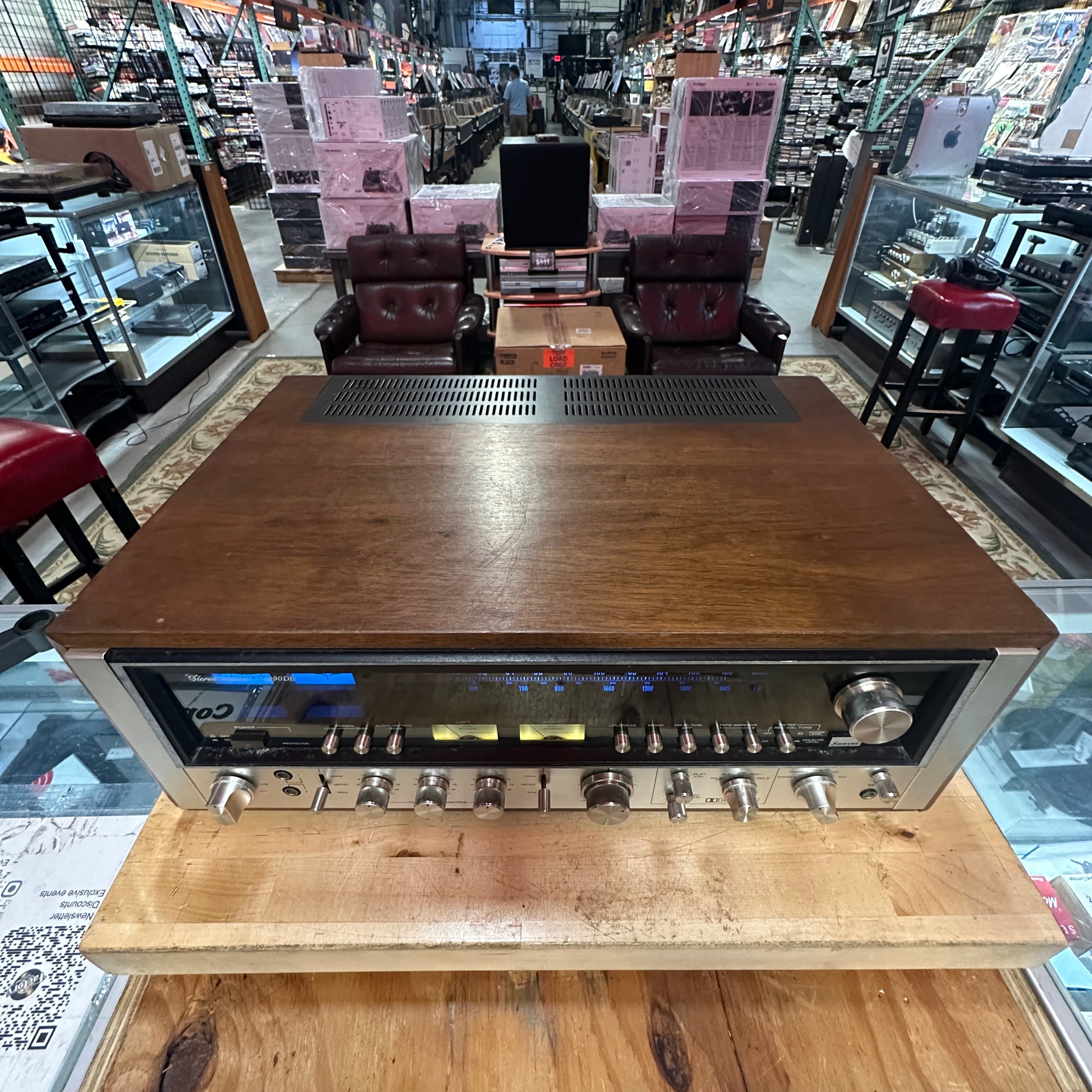

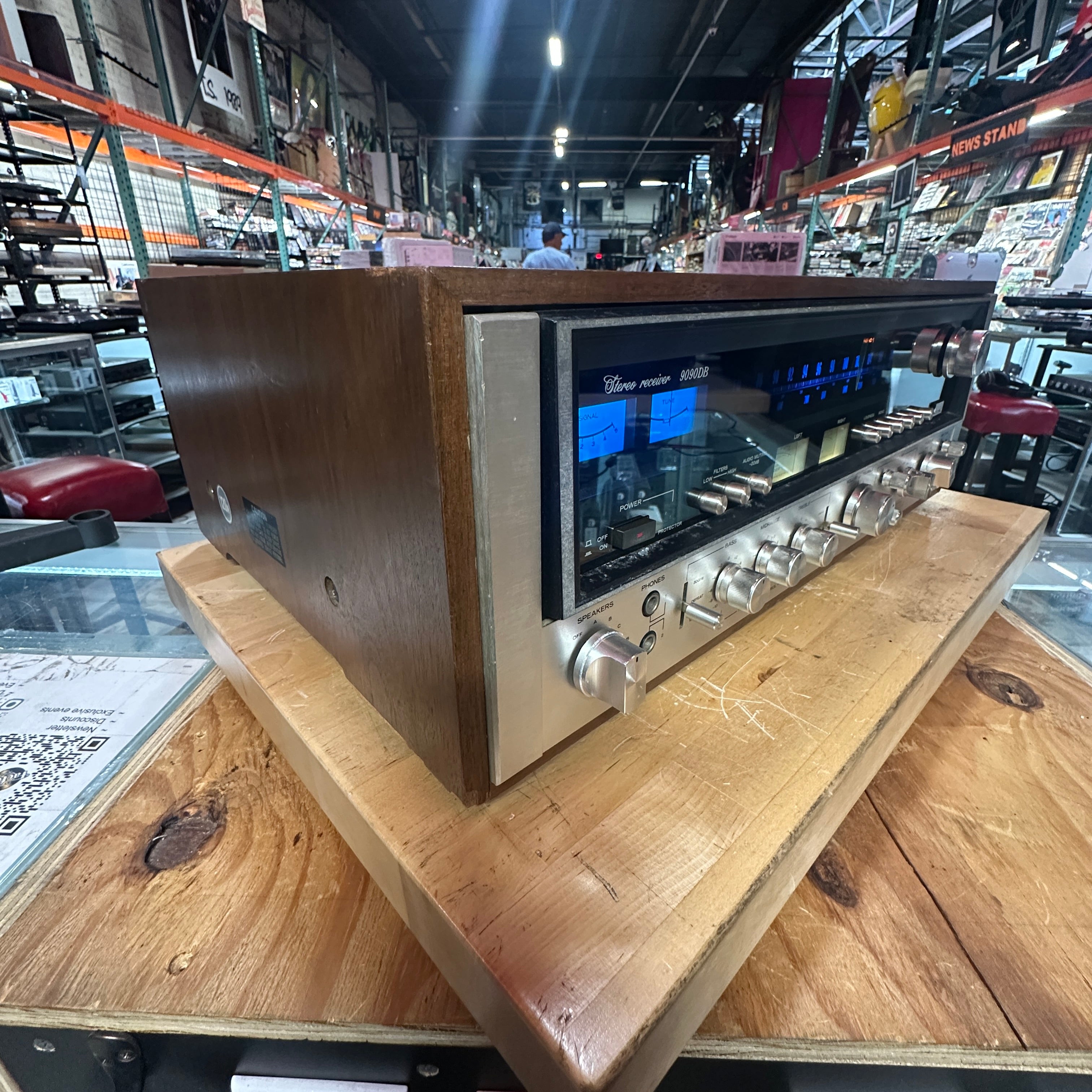

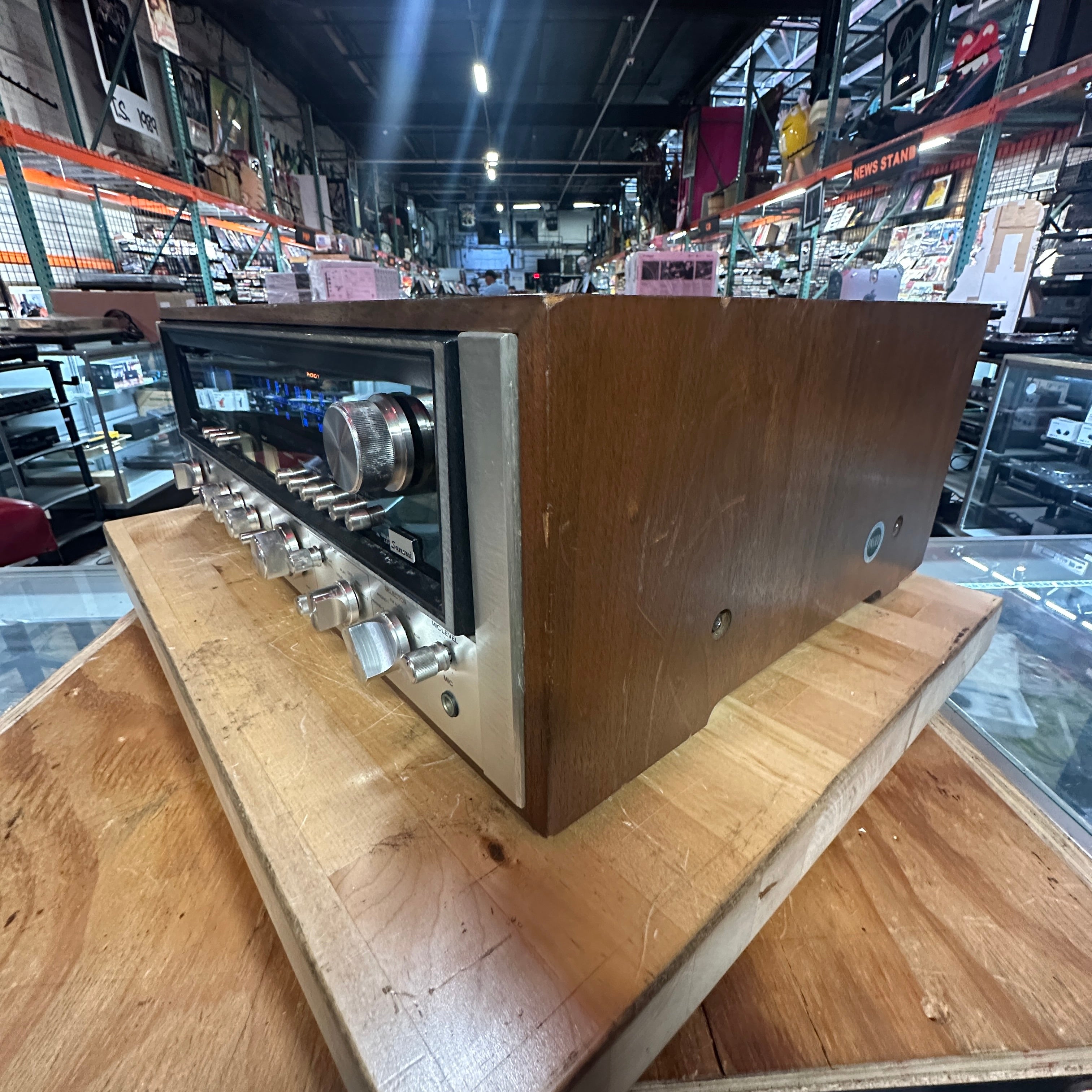

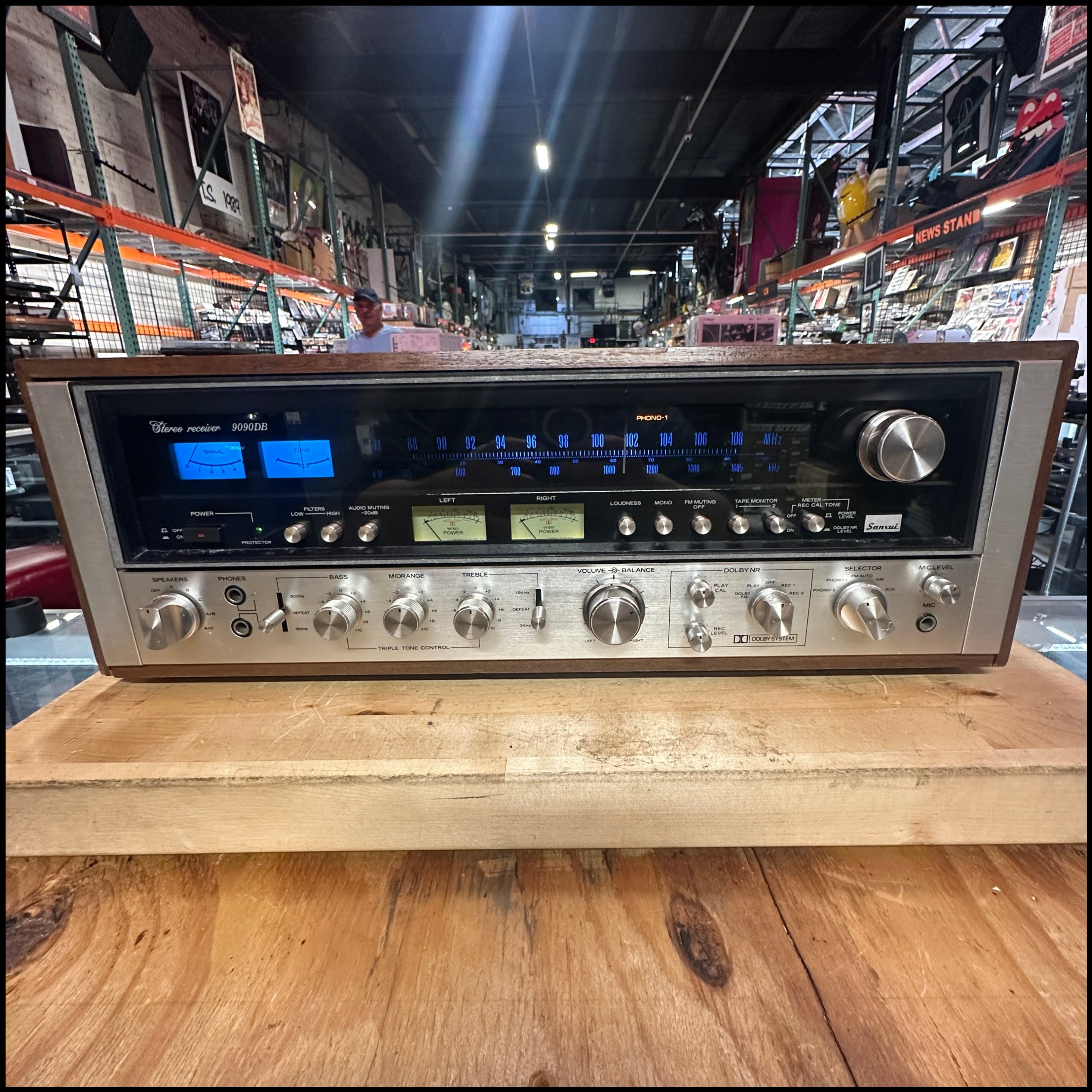

The front panel is unmistakably Sansui: illuminated analog tuning display, large dual power meters that also serve as Dolby calibration meters, separate tuning and signal-strength meters, and an extensive array of audio controls.

This is a receiver built for serious collectors and music lovers who appreciate the engineering, craftsmanship, and unmistakable character of vintage Sansui.

WHY YOU WANT THIS SANSUI 9090DB

• 125 Watts Per Channel: Powerful RMS output into 8 ohms, with both channels driven.

• Built-In Dolby Noise Reduction: Dolby circuitry for compatible FM broadcasts and tape recording and playback.

• Dual Power / Dolby Meters: Beautiful illuminated meters that display amplifier output and Dolby recording levels.

• Exceptional FM Tuner: Sensitive tuner section with excellent selectivity and stereo separation.

• Dual Phono Inputs: Connect two turntables or compatible moving-magnet phono sources.

• Triple Tone Controls: Independent bass, midrange, and treble adjustments for precise sound customization.

• Tone Turnover Selectors: Adjustable bass and treble turnover frequencies for greater tonal flexibility.

• Microphone Mixing: Front microphone input with separate mixing-level control.

• Three Speaker Systems: Flexible speaker selection for multiple listening configurations.

• Pre-Out / Main-In Connections: Allows connection to separate amplifiers or external audio equipment.

• Classic Sansui Construction: Substantial chassis, premium components, and unmistakable vintage styling.

TECHNICAL SPECIFICATIONS

Model: Sansui 9090DB
Type: AM/FM Stereo Receiver with Dolby Noise Reduction
Manufacture Period: Approximately 1975–1977
Amplifier Design: Solid-state stereo amplifier

AUDIO SECTION

Power Output: 125 watts per channel RMS into 8 ohms
Power Output at 1kHz: 135 watts per channel into 8 ohms
Total Harmonic Distortion: Less than 0.1%
Intermodulation Distortion: Less than 0.1%
Frequency Response: 10Hz–30kHz ±1dB at 1 watt
Damping Factor: Approximately 30
Speaker Impedance: 8 ohms rated
RIAA Accuracy: ±0.3dB, 30Hz–15kHz
Signal-to-Noise Ratio: Better than 70dB (Phono), 80dB (AUX/Tape)
Channel Separation: Better than 50dB

TUNER SECTION

FM Tuning Range: 88–108MHz
AM Tuning Range: 535–1,605kHz
FM Sensitivity: 9.8dBf (1.7µV)
FM Signal-to-Noise Ratio: Better than 70dB
FM Stereo Separation: Better than 40dB at 1kHz
FM Selectivity: Better than 85dB
Dolby FM: Built-in Dolby noise-reduction decoding

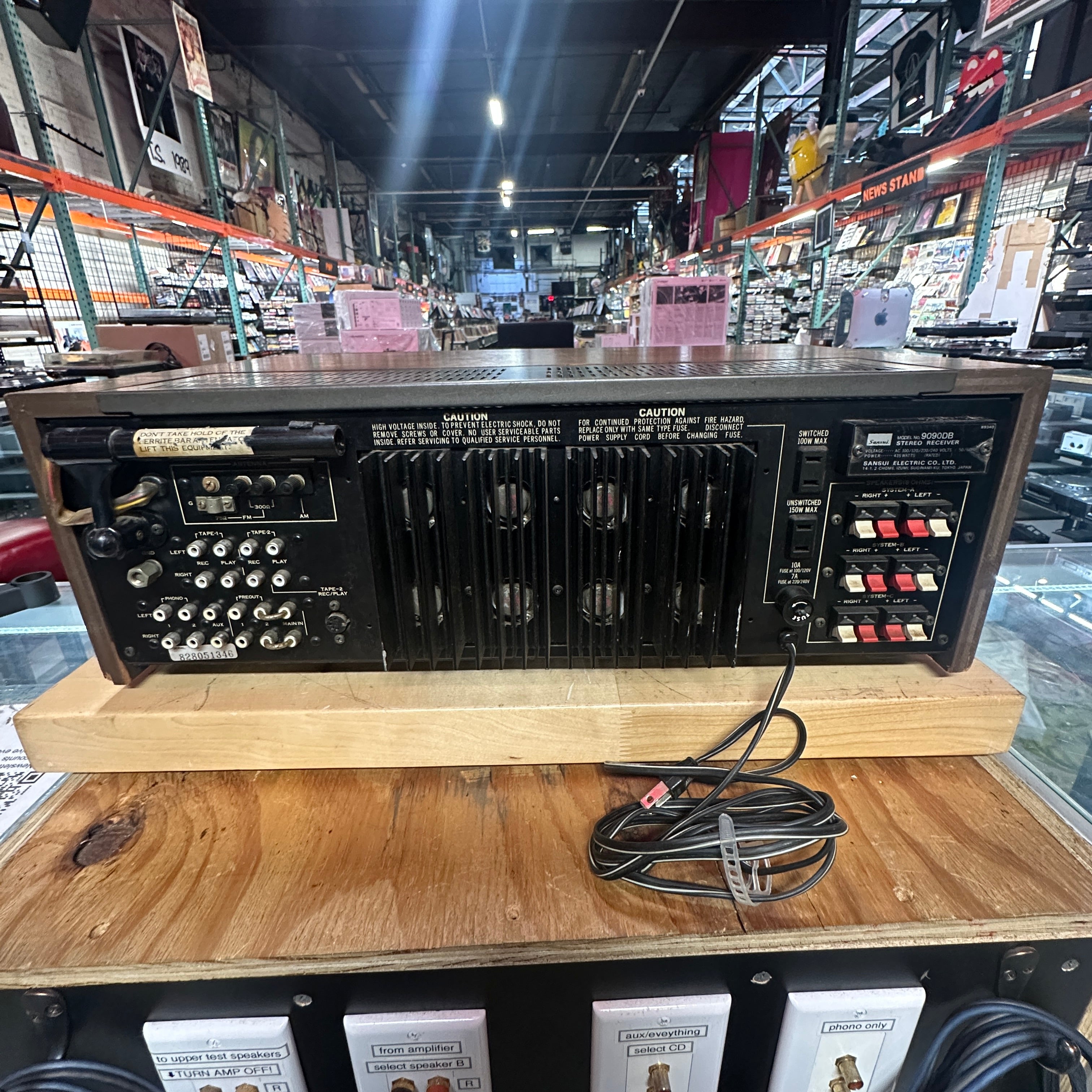

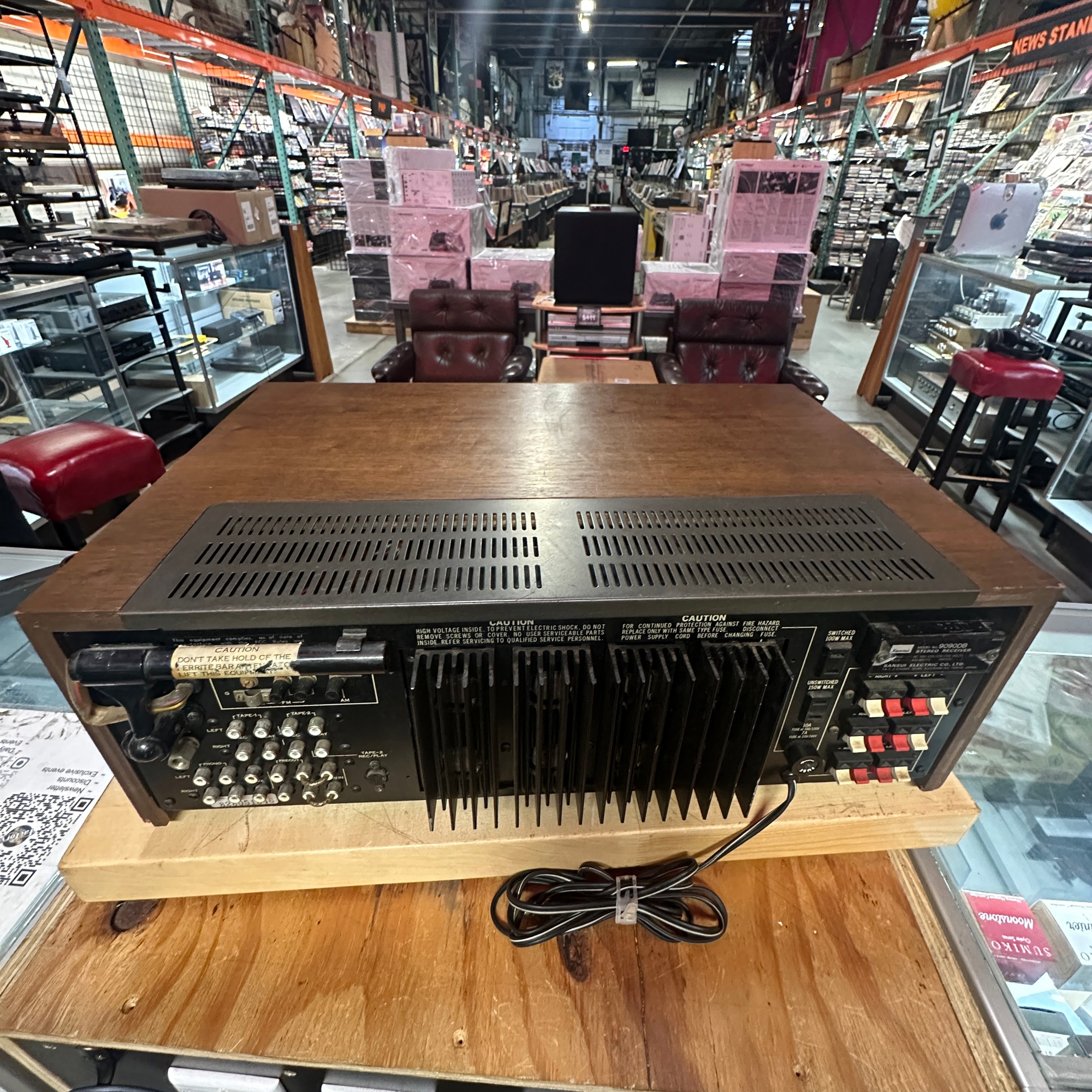

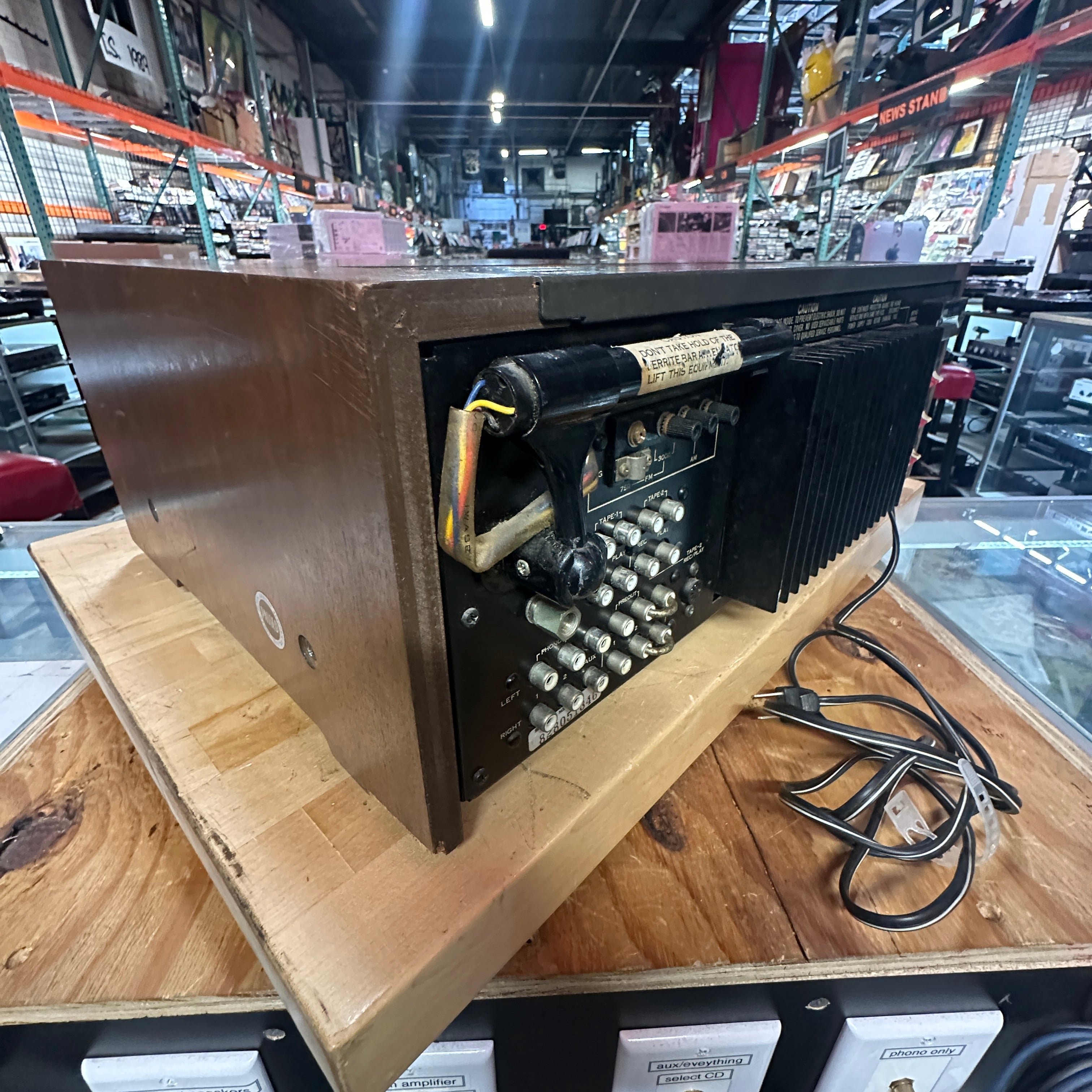

INPUTS & CONNECTIONS

• Phono 1

• Phono 2

• AUX

• Tape 1

• Tape 2

• Microphone input

• Pre-out / Main-in

• Headphone output

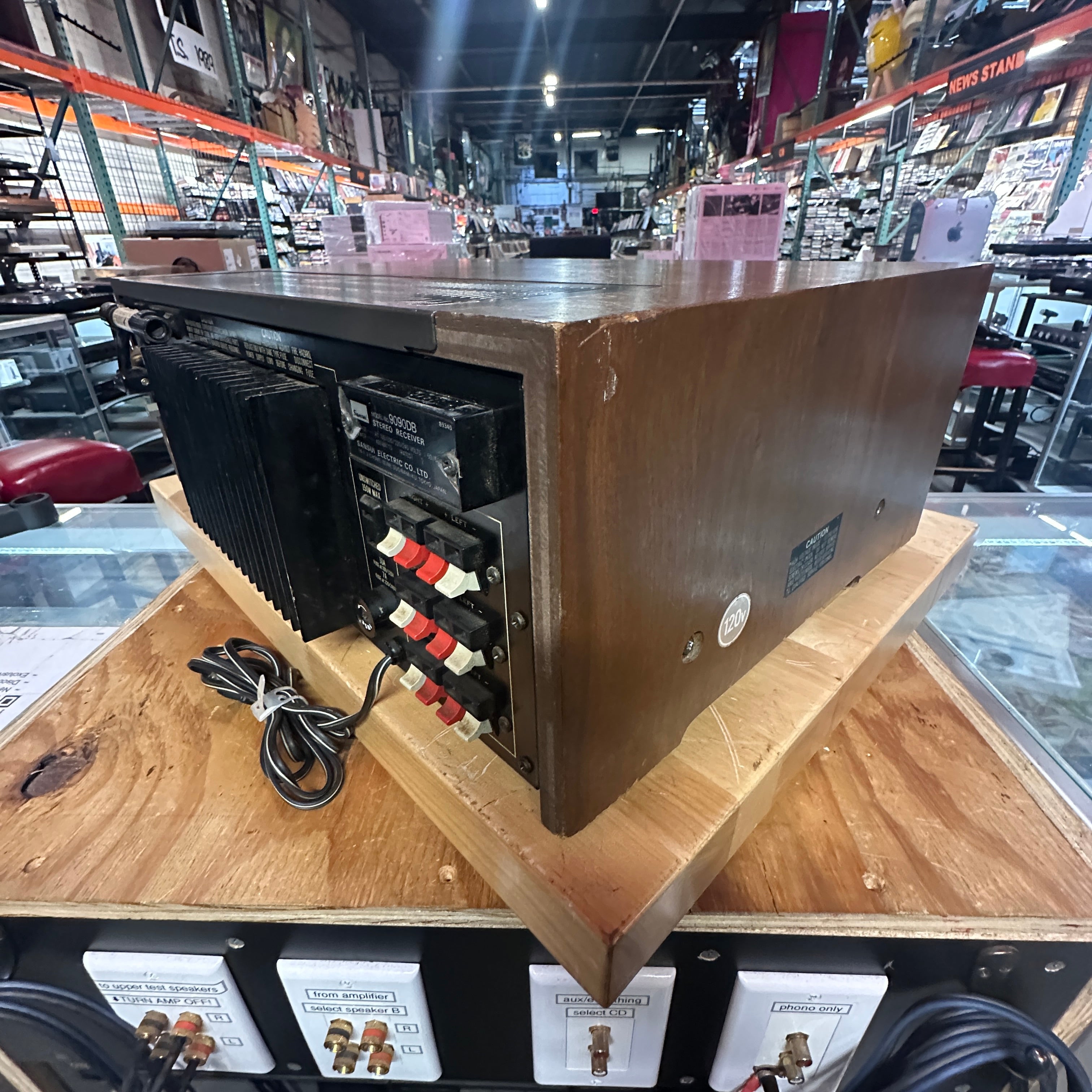

• Speaker systems A, B, and C

ADDITIONAL FEATURES

• Built-in Dolby noise reduction

• Dual power / Dolby calibration meters

• Separate tuning and signal-strength meters

• Bass, midrange, and treble controls

• Bass and treble turnover selectors

• Loudness control

• High and low filters

• 20dB audio muting

• Tape monitoring and dubbing

• Microphone mixing control

DIMENSIONS & WEIGHT

Width: 21-5/16 inches
Height: 7-3/16 inches
Depth: 15-11/16 inches
Net Weight: 52.0 lbs (23.6 kg)
Factory Packed Weight: 57.3 lbs (26.0 kg)

WHY BUY FROM FACTORY HI-FI?

At Factory HiFi, we're passionate about vintage audio and the equipment that made listening to music special.

• Carefully inspected before shipping

• Final operational testing

• Servicing and adjustments as needed

• Professionally packed for safe delivery

• Knowledge and appreciation of vintage hi-fi equipment

The Sansui 9090DB is more than a receiver. It's a piece of audio history that combines tremendous power, sophisticated Dolby technology, exceptional tuner performance, and the unmistakable styling of Sansui's golden era.

Whether you're building a serious vintage stereo system or adding a legendary receiver to your collection, the 9090DB is a centerpiece worth owning.

Bring home a Sansui legend.
